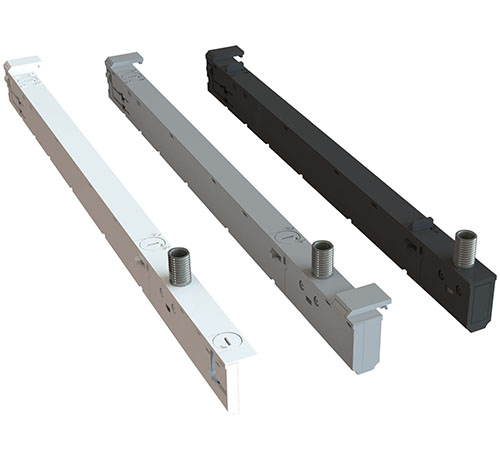

28005612 LC 28/100-700/40 FlexC Ti-G EXC AB314
Product description
- Constant current / in-track LED driver
- Completely in-track, enabling a true no-compromise design
- Optional accessory for mounting the luminaire head
- Compatible with Global Trac PULSE from Nordic Aluminum and OneTrack from Stucchi, see data sheet
- For luminaires of protection class II
- Temperature protection as per EN 61347-2-13 C5e
- Selectable fixed output current via DIP switch 100 and 700 mA (pre-selected current 100 mA)
- Max. output power 28 W
- Up to 86 % efficiency
- Power input on stand-by < 0.5 W
- Nominal lifetime up to 100,000 h
- 5 years guarantee
Açıklama
Product description
- Constant current / in-track LED driver
- Completely in-track, enabling a true no-compromise design
- Optional accessory for mounting the luminaire head
- Compatible with Global Trac PULSE from Nordic Aluminum and OneTrack from Stucchi, see data sheet
- For luminaires of protection class II
- Temperature protection as per EN 61347-2-13 C5e
- Selectable fixed output current via DIP switch 100 and 700 mA (pre-selected current 100 mA)
- Max. output power 28 W
- Up to 86 % efficiency
- Power input on stand-by < 0.5 W
- Nominal lifetime up to 100,000 h
- 5 years guarantee
Housing properties
- Casing: polycarbonate, black, white or grey
- Type of protection IP20
Interfaces
- Terminal blocks: 45° push terminals
Functions
- Overtemperature protection
- Overload protection
- Short-circuit protection
- No-load protection
- Burst protection voltage 2 kV
- Surge protection voltage 1 kV (L to N)
Typical applications
- For spot light in retail and hospitality application
