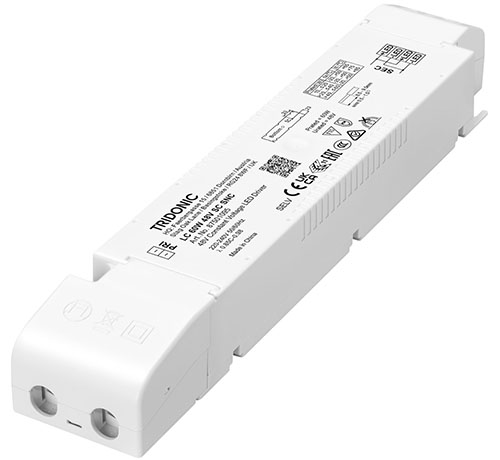

87501095 LC 60W 48V SC SNC AB451
Product description
- Constant voltage LED driver
- Output voltage 48 V
- Max. output power 60 W
- Dimmable via external PWM LED dimmers attached on output side
- For luminaires of protection class I and protection class II
- Possible to connect on / off 48 V DC / DC boards
- The strain relief is included in both packaging variants. In the single packaging (SP) each Driver has also an individual packaging
- Nominal lifetime up to 50,000 h
- 5 years guarantee
Açıklama
Product description
- Constant voltage LED driver
- Output voltage 48 V
- Max. output power 60 W
- Dimmable via external PWM LED dimmers attached on output side
- For luminaires of protection class I and protection class II
- Possible to connect on / off 48 V DC / DC boards
- The strain relief is included in both packaging variants. In the single packaging (SP) each Driver has also an individual packaging
- Nominal lifetime up to 50,000 h
- 5 years guarantee
Typical applications
- Cove lighting, facade accent lighting, ceiling integration
Technical details
- 48 V, 60 W

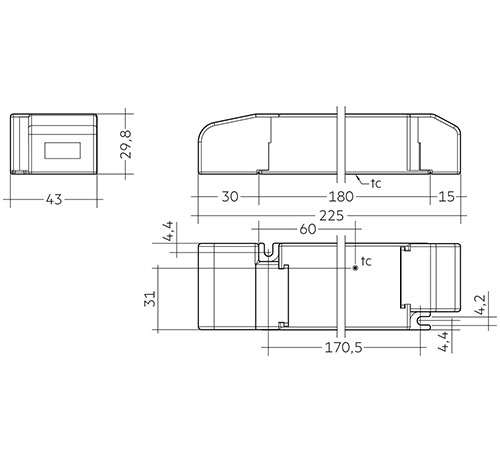

- Small design (225 x 43 x 30.2 mm) with stretched-compact strain relief
- Output LF voltage ripple (< 120 Hz) ± 1.5 %
- Power input on stand-by < 0.5 W
- Small cross section
- Push terminals for simple wiring
System solution
- Tridonic LLE FLEX SNC4 and EXC4
- In connection with ACL FLEX accessories wire to PCB
