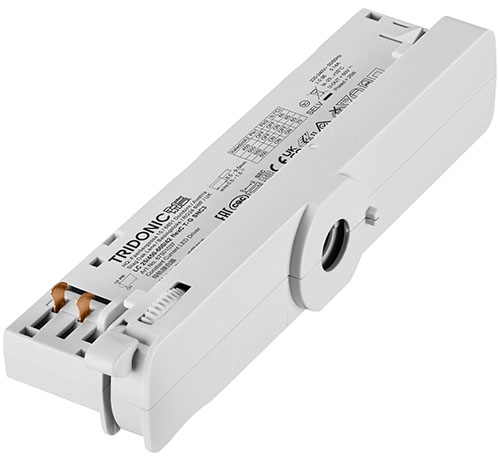

87501158 LC 25/450-600/42 flexC T-G SNC3 AB305
Product description
- Constant current / in-track LED driver
- Optional accessory ACU ALU NIPPLE M10x1 for mounting the luminaire head
- Compatible 3-phase system in-tracks, see data sheet chapter 3.8
- For luminaires of protection class II
- BIS approval mark for the white and black versions only
- Temperature protection as per EN 61347-2-13 C5e
- Selectable fixed output current via DIP switch 600, 550, 500 and 450 mA (pre-selected current 450 mA)
- Max. output power 25.2 W
- Up to 86 % efficiency
- Nominal lifetime up to 100,000 h
- 5 years guarantee
Açıklama
Product description
- Constant current / in-track LED driver
- Optional accessory ACU ALU NIPPLE M10x1 for mounting the luminaire head
- Compatible 3-phase system in-tracks, see data sheet chapter 3.8
- For luminaires of protection class II
- BIS approval mark for the white and black versions only
- Temperature protection as per EN 61347-2-13 C5e
- Selectable fixed output current via DIP switch 600, 550, 500 and 450 mA (pre-selected current 450 mA)
- Max. output power 25.2 W
- Up to 86 % efficiency
- Nominal lifetime up to 100,000 h
- 5 years guarantee
Housing properties
- Casing: polycarbonate, black, white or grey
- Type of protection IP20
Functions
- Overload protection
- Short-circuit protection
- No-load protection
Typical applications
- For spot light in retail and hospitality application
