Açıklama
– Comply with IEC/EN60998-2-2
– Easy mounting (with ‘fixing – snaps’)

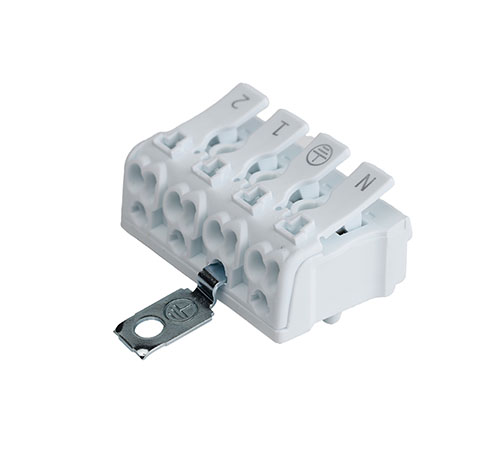

– Prints on Buttons: (N E 1 2) or upon user’s requirement
– Ready for use in Vask Special Junction Box for class II protection
* Junction Box Model 415
Specification
Housing : Polypropylene (high-temp)
Metal Part : Plated Brass / Steel spring
Voltage (V) : IEC/EN 450V
Ampere (A) : 16 (for up to 1.5mm²)/ 24 (for up to 2.5mm²)
Ambient Temperature: T100 ℃
Flammability rating: UL94V-2
Wiring Capacity (mm2) : Wiring Holes Wiring Hole
(a) + (b) ( c )
0.5 – 2.5 0.5 – 0.75
Installation / User-side (with press-release button)
Factory / Internal – side 0.5 – 2.5 0.5 – 0.75
(without press-release button) solid only solid only
