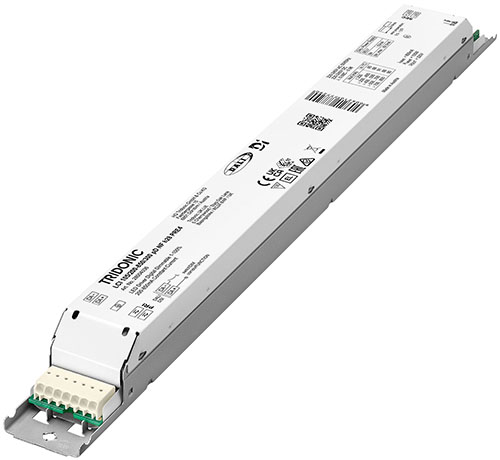

28004036 LCI 105/200-850/300 pD NF h28 PRE4 AD779

Product description

Constant current built-in Driver for LED, particularly suitable for industrial applications in tough environments with elevated ambient temperatures such as warehouses or factories
Certified D4i product
Dimming range 1 to 100 %
For luminaires of protection class I and protection class II
Output current adjustable between 200 – 850 mA
Max. output power 105 W
Suitable for mains voltage peaks (burst/surge) up to 4 kV
Expanded temperature range of -40 … +80 °C
Nominal lifetime up to 100,000 h (at ta 60 °C)
8 years guarantee

Stok kodu: AD779 Kategoriler: Led Sürücüler, Lineer Endüstriyel Dim Edilebilir Sürücüler, Tridonic, Lineer Endüstriyel Sürücüler Etiketler: Endüstriyel Sürücüler, Tridonic, Led Sürücüler, Lineer Sürücüler, Dim Edilebilir Sürücüler

Açıklama

Açıklama

Açıklama

Product description

Constant current built-in Driver for LED, particularly suitable for industrial applications in tough environments with elevated ambient temperatures such as warehouses or factories
Certified D4i product
Dimming range 1 to 100 %
For luminaires of protection class I and protection class II
Output current adjustable between 200 – 850 mA
Max. output power 105 W
Suitable for mains voltage peaks (burst/surge) up to 4 kV
Expanded temperature range of -40 … +80 °C
Nominal lifetime up to 100,000 h (at ta 60 °C)
8 years guarantee

Housing properties

White slim metal casing
Type of protection IP20

Interfaces

Near field communication (NFC)
one4all (DALI-2 DT 6, DSI, switchDIM, corridorFUNCTION)
Terminal blocks: 0° push terminals

Functions

Adjustable output current in 1-mA-steps (NFC, DALI)
Fulfills DALI-2 parts: 250 (Integrated bus power supply), 251 (Luminaire data), 252 (Energy reporting) and 253 (Diagnostics & Maintenance)
Constant light output function (CLO)
Intelligent Temperature Guard (overtemperature protection)
Intelligent Voltage Guard (overvoltage and undervoltage monitoring)
Protective features (overtemperature, short-circuit, overload, no-load, input voltage range)
Suitable for emergency escape lighting systems acc. to EN 50172

Benefits

Flexible configuration via companionSUITE (NFC, DALI)
Application-oriented operating window for maximum compatibility
Extended vibration damping
Increased safety through robust design and advanced testing under extreme test conditions
High reliability through the selection of exclusive components

Typical applications

For linear/area lighting in industry applications
