Product description

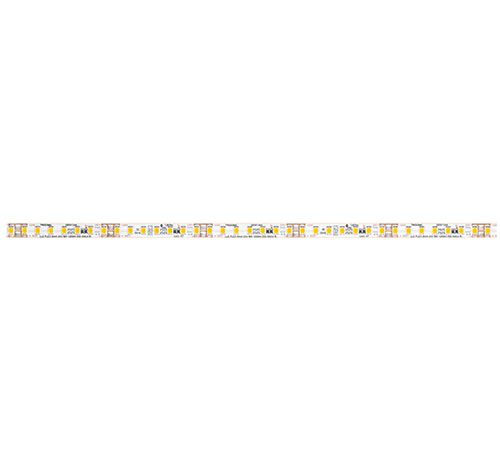

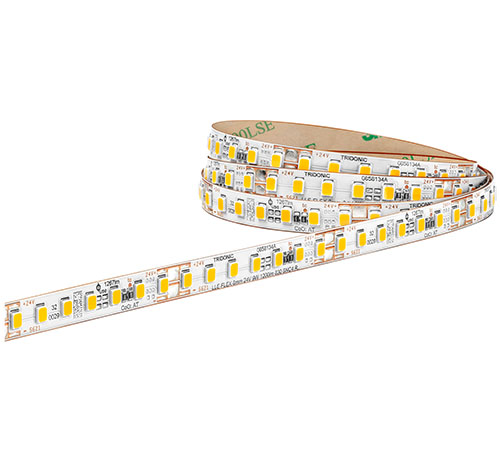

- Dimmable 24 V constant voltage LED flextape (SELV)
- Ideal for various lighting applications: indirect, accent and decorative lighting, ceiling integration, cove lighting and aluminium extrusions
- 1 reel = 5 m
- Made in Europe
- Long lifetime: 60,000 hours
- 5 years guarantee
Optical properties
- Colour temperature 2,700, 3,000, 4,000 K (6,500 K on demand)
- Useful luminous flux up to 2,694 lm/m at tp = 25 °C
- Efficacy of the LED module up to 159 lm/W at tp = 25 °C
- High colour rendering index CRI > 80 and CRI > 90
- Low colour temperature tolerances (MacAdam 3)
Mechanical properties
- High design freedom due to 5 cm cut-options and 140 LED light points per meter
- Self-adhesive 3M tape at the backside for simple mounting on different surfaces
- Available PCB to PCB and wire to PCB connectors for toolless handling and connection
- reel2reel – No solder joints on the tape, easy to separate and low length tolerances
System solution
- System solution in combination with Tridonic constant voltage LED driver (fixed output and dimmable)
(1) For 5 m reel max. 2 solder joints.
