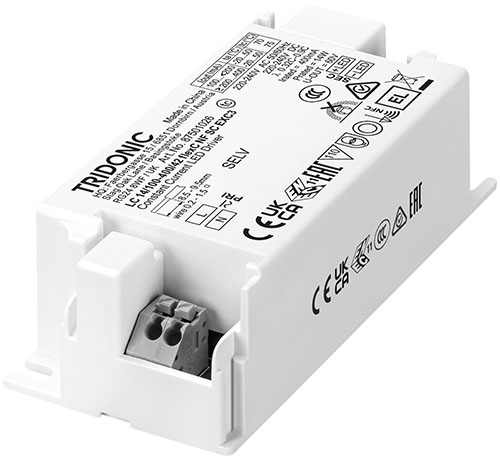

87501026 LC 14/100-400/42 flexC NF SC EXC3 AD430
Product description
- Can be either used build-in or independent with clip-on strain-relief (see accessory)
- For luminaires of protection class I and protection class II
- Temperature protection as per EN 61347-2-13 C5e
- Adjustable output current between 100 – 400 mA via NFC
- Max. output power 14 W
- Up to 83 % efficiency
- Nominal lifetime up to 100,000 h
- 5 years guarantee
Açıklama
Product description
- Can be either used build-in or independent with clip-on strain-relief (see accessory)
- For luminaires of protection class I and protection class II
- Temperature protection as per EN 61347-2-13 C5e
- Adjustable output current between 100 – 400 mA via NFC
- Max. output power 14 W
- Up to 83 % efficiency
- Nominal lifetime up to 100,000 h
- 5 years guarantee
Housing properties
- Casing: polycarbonate, white
- Type of protection IP20
Interfaces
- Near field communication (NFC)
- Terminal blocks: 45° push terminals
Functions
- Adjustable output current in 1-mA-steps (NFC)
- Constant light output function (CLO)
- Protective features (overtemperature, short-circuit, overload, no-load)
- Suitable for emergency escape lighting systems acc. to EN 50172
Benefits
- Flexible configuration via companionSUITE (NFC)
- Application-oriented operating window for maximum compatibility
- Best energy savings due to low stand-by losses and high efficiency
- In-field programming possible after installation with NFC interface
Typical applications
- For downlight, spotlight and decorative applications
