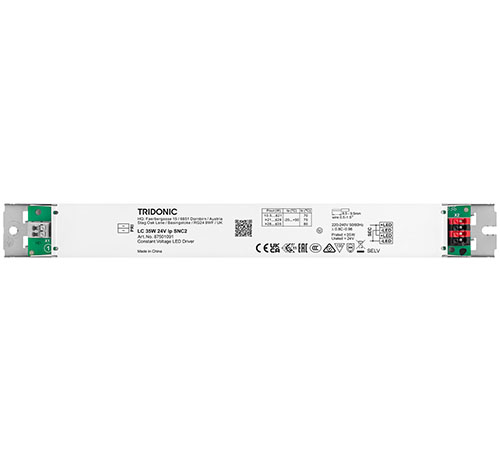

87501091 LC 35W 24V lp SNC2 AD161
Product description
- Constant voltage LED driver
- Output voltage 24 V
- Max. output power 35 W
- For luminaires of protection class I and protection class II
- Dimmable via external PWM LED dimmers attached on output side
- Power input on stand-by < 0.5 W
- Nominal lifetime up to 100,000 h
- 5 years guarantee
Açıklama
Product description
- Constant voltage LED driver
- Output voltage 24 V
- Max. output power 35 W
- For luminaires of protection class I and protection class II
- Dimmable via external PWM LED dimmers attached on output side
- Power input on stand-by < 0.5 W
- Nominal lifetime up to 100,000 h
- 5 years guarantee
Typical applications
- Cove lighting, facade accent lighting, ceiling integration
Technical details
- 24 V, 35 W
- Output LF voltage ripple (< 120 Hz) ± 1.5 %
- Small cross section
- Push terminals for simple wiring
System solution
- Tridonic LLE-FLEX ADV G2 600, 1,200, 1,800 lm/m
- Tridonic LLE-FLEX EXC 600, 1,200, 1,800, 2,500 lm/m
- In connection with Flex accessories wire to PCB plug
