Product Data

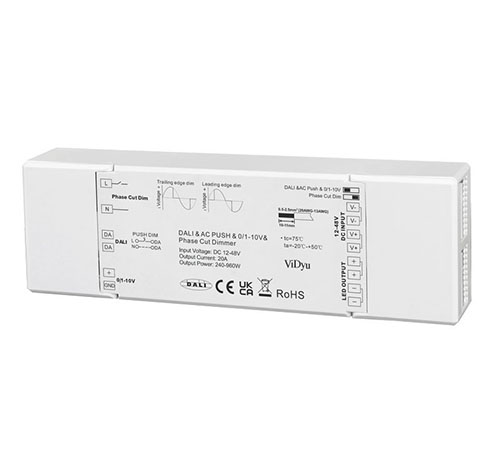

• Multifunction 4 in 1 LED Dimmer, with DALI, AC push, 0/1-10V and Phase Cut dimming interfaces
• In compliance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2.
• Built-in DALI-2 interface, DALI DT6 device
• Match all DALI systems in the market
• Dip switch to select different dimming interfaces
• 1 channel 12-48VDC output, max. 20A
• Supports both leading edge and trailing edge dimming input
• 1 DALI address assigned by DALI master
• Compatible with universal phase cut dimmers
• To work with power repeater to expand output power unlimitedly.
• Waterproof grade: IP20
Safety & Warnings
• DO NOT select dimming input with power applied to the device.
• DO NOT install with power applied to device.
• DO NOT expose the device to moisture.

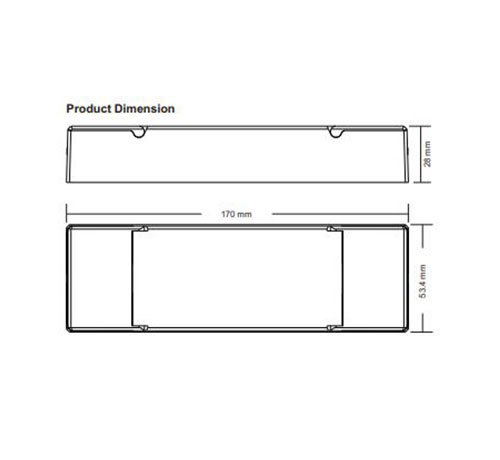

Operation
DIP Switch to Select Dimming Input
Before wiring, please first select dimming input interface by DIP switch depending on the control system used.
Different dimming interfaces can not be wired and used simultaneously. Only 1 of the 4 can be selected and
wired at a time.
DALI Address Assigned by DALI Masters
While select DALI dimming input, DALI address can be assigned by DALI Master controller automatically,
please refer to user manuals of compatible DALI Masters for specific operations.
Wiring Diagram
When connecting with two separate loads and each one is not over 10A
Note: the device allows 0.5-2.5mm wire specifications, please make sure the rated current of the
used wire is enough for the loads.
